Model Context Protocol (MCP)

Zyphe ships a built-in Model Context Protocol server that lets AI agents and MCP-compatible clients (Claude Desktop, Claude Code, Cursor, and any other MCP host) manage your flows, forms, and API keys programmatically through natural language.

Instead of writing REST clients or learning the dashboard UI, you can simply ask your AI assistant "create a new KYC flow with a document verification step and a form". The agent will call the right MCP tools on your behalf.

info

The MCP server is exposed by the same Zyphe API server that handles REST traffic. There is no separate process or port to run.

Capabilities at a glance

The MCP server exposes 19 tools organized into four groups:

• Flows: list, create, read, update, delete flows; manage flow-level settings (branding, webhooks).
• Flow steps: add, update, and delete steps inside a flow (DV, FORM, POA, KYB, SPID, PHONE, WALLET, LIVENESS, AUTO_ONE_CLICK_KYC, DOCUMENT_SELECTION, GEOLOCATION).
• Forms: list, create, read, update, delete forms with their sections.
• API keys: list, create, read, update, delete API keys (SECRET and PUBLISHABLE).

Every tool accepts an optional sandbox: boolean flag so you can target the sandbox environment from the same connection.

Authentication

The MCP server is authenticated with bot tokens. Bots are organization-scoped service identities; their permissions are evaluated by the same role-based access control policies that govern the REST API, so a bot can only do what its assigned role is allowed to do.

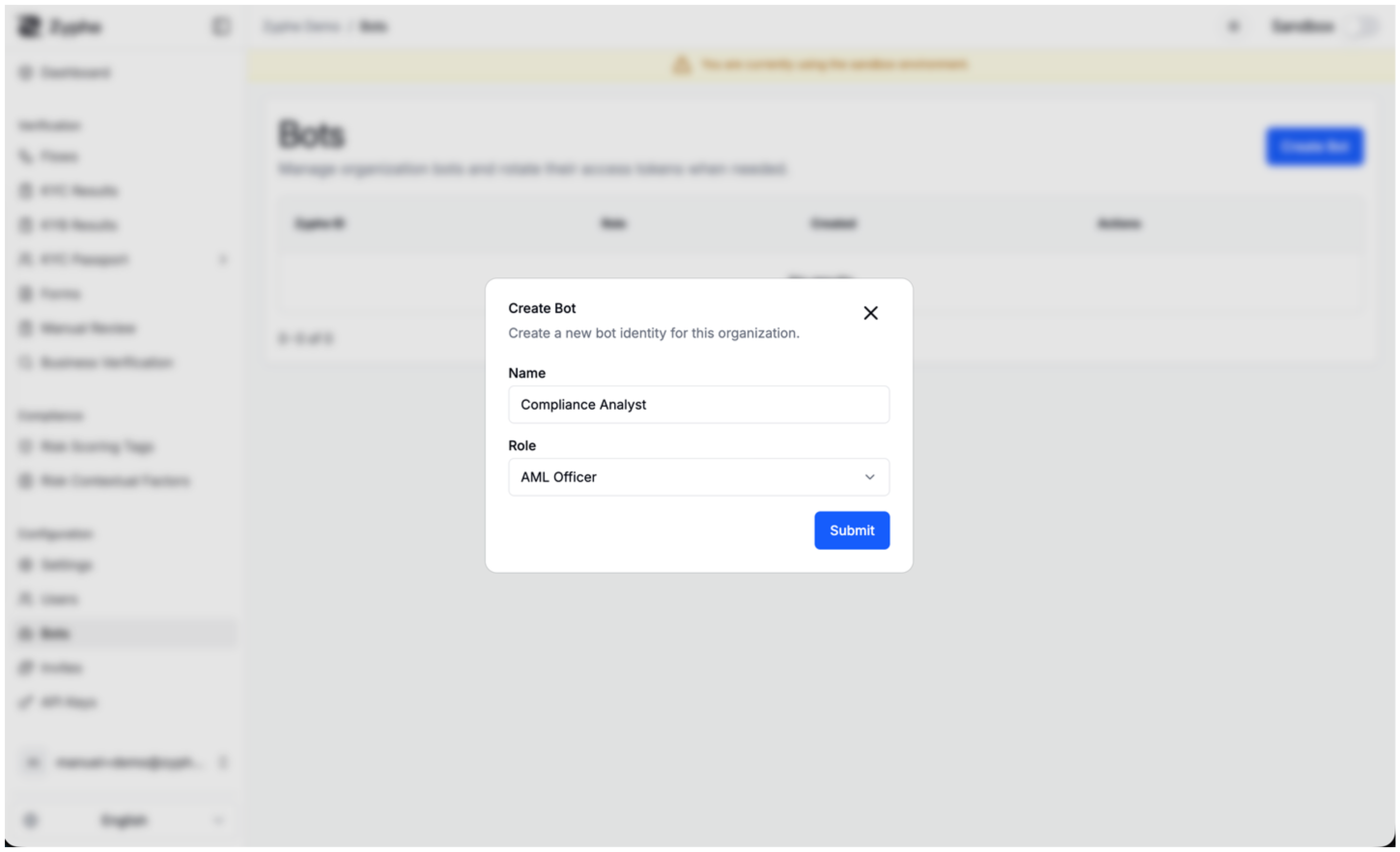

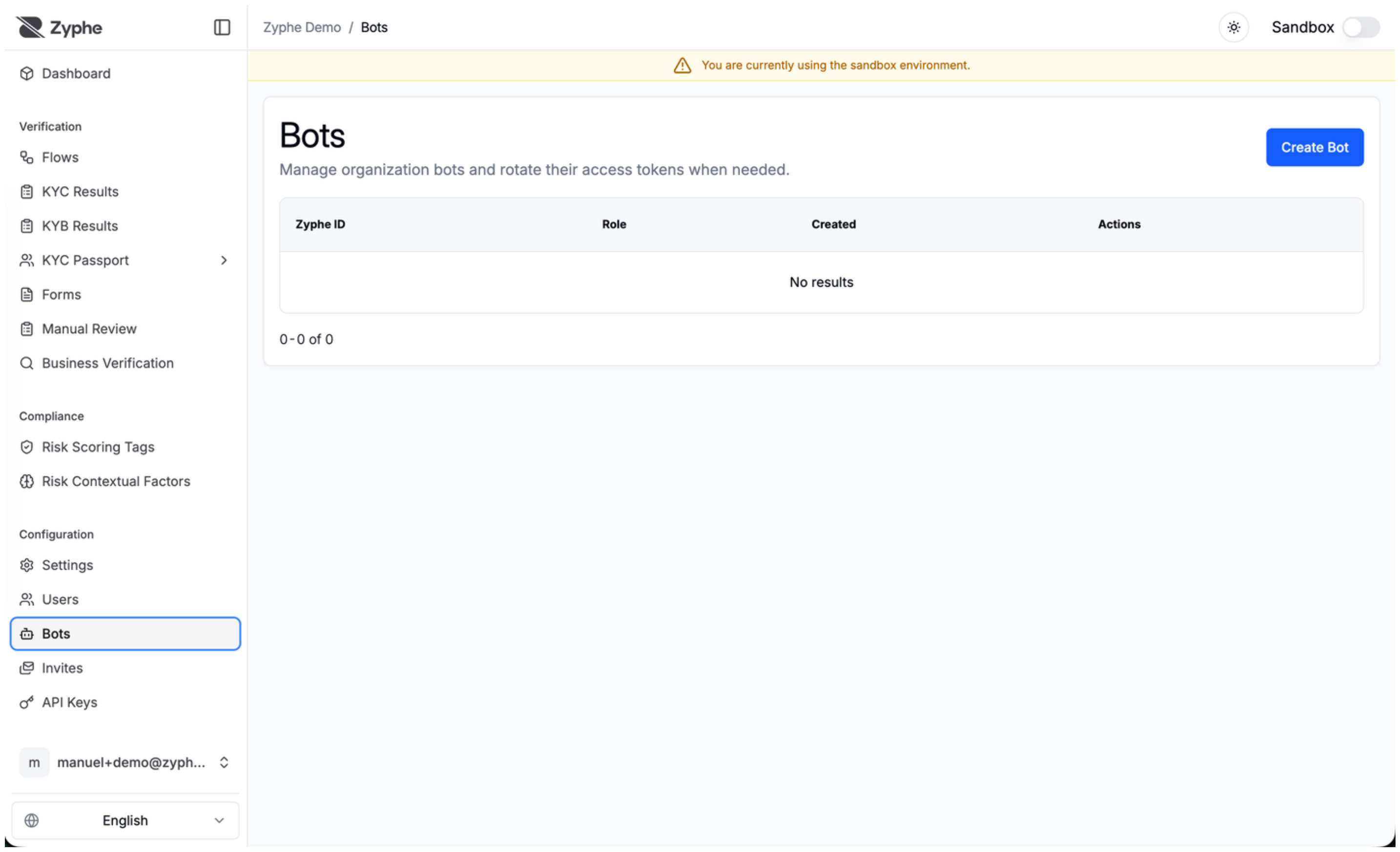

1. Create a bot and obtain a token

Bot management lives under /organizations/{organization_id}/bots/... in the REST API:

Method	Path	Purpose
GET	/organizations/{org_id}/bots/list	List bots in the organization
POST	/organizations/{org_id}/bots/create	Create a new bot (returns plain token)
GET	/organizations/{org_id}/bots/{bot_id}/get	Fetch bot metadata
POST	/organizations/{org_id}/bots/{bot_id}/regenerate-token	Issue a new token; the previous one dies
DELETE	/organizations/{org_id}/bots/{bot_id}/delete	Soft-delete the bot

The plain-text token is returned only once at creation (or regeneration). It looks like:

zyphe_bot_<48 random alphanumeric characters>

Store the token securely

Tokens are SHA-256 hashed on the server, so Zyphe cannot retrieve a lost token. If you misplace one, regenerate it. Treat bot tokens like passwords: never commit them to source control, never paste them into chat logs.

2. Use the token

Send it as a Bearer token on the Authorization header:

Authorization: Bearer zyphe_bot_xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx

If the header is missing or the token is invalid, the server responds with 401 Unauthorized. If the bot's role does not allow the requested operation, the tool call returns an MCP error with code INVALID_REQUEST and message "Permission denied".

Endpoint

The MCP server is mounted on the same host and port as the Zyphe API:

POST {ZYPHE_API_BASE_URL}/mcp

It uses the Streamable HTTP transport from the MCP specification. Any MCP-compliant client that supports HTTP transport can connect to it.

Connecting a client

Claude Desktop / Claude Code

Add an entry to your mcp.json (or the equivalent config UI):

{
  "mcpServers": {
    "zyphe": {
      "transport": {
        "type": "http",
        "url": "https://api.zyphe.com/mcp",
        "headers": {
          "Authorization": "Bearer zyphe_bot_YOUR_TOKEN_HERE"
        }
      }
    }
  }
}

Replace https://api.zyphe.com with the URL of your Zyphe deployment, and substitute your bot token.

Cursor

Cursor supports MCP via the same JSON config format. Add the snippet above to your Cursor MCP settings.

Generic / programmatic

Any MCP client SDK (TypeScript, Python, etc.) that supports the streamable-HTTP transport can talk to /mcp. Point the transport at the URL and inject the Authorization header.

Tool reference

All parameters use camelCase keys. Every tool also accepts an optional sandbox boolean (default false) to target the sandbox environment instead of production.

Flows

list_flows

List flows for the bot's organization, with optional pagination, sorting, and filtering.

Field	Type	Required	Description
skip	integer	no	Records to skip (default 0)
take	integer	no	Records to return (default 100)
sort	string	no	Sort field and direction, e.g. "createdAt:desc"
filter	string	no	Semicolon-separated triples "field:operator:value" (e.g. "flow_type:eq:KYC")
sandbox	boolean	no	Use sandbox environment

create_flow

Create a new flow. Required: name, slug, webhookUrl, successUrl.

Field	Type	Description
name	string	Display name of the flow
slug	string	URL-safe identifier (e.g. "kyc-flow")
webhookUrl	string	Webhook URL called on flow completion
successUrl	string	Redirect URL on successful completion
failureUrl	string	Redirect URL on failure (optional)
sandbox	boolean	Create in sandbox environment

update_flow

Update an existing flow's metadata. Required: flowId, name, slug, webhookUrl, successUrl.

get_flow

Get a flow by its ID. Required: flowId.

delete_flow

Soft-delete a flow by its ID. Required: flowId.

get_flow_settings

Get the settings (branding, webhook options) for a flow. Required: flowId.

update_flow_settings

Update the settings for a flow. Required: flowId. All other fields are optional and patch-style; only provided fields are changed.

Field	Type	Description
primaryColor	string	Primary brand color (hex)
secondaryColor	string	Secondary brand color (hex)
profileImage	string	URL of the organization logo
webhookSecret	string	HMAC secret for webhook signature verification
extendedWebhook	boolean	Include extended data in webhook payloads
published	boolean	Whether the flow is publicly accessible
skipSignedAccess	boolean	Skip signed-URL access control

Flow steps

create_flow_step

Add a new step to a flow. Required: flowId, name, stepType, config, order.

Field	Type	Description
flowId	string	UUID of the parent flow
name	string	Display name of the step
stepType	string	One of: DV, FORM, POA, KYB, SPID, PHONE, WALLET, LIVENESS, AUTO_ONE_CLICK_KYC, DOCUMENT_SELECTION, GEOLOCATION
config	object	Step configuration object (must contain a matching stepType discriminator)
order	integer	Position of the step in the flow (0-based)
successUrl	string	Override success redirect URL for this step (optional)
failureUrl	string	Override failure redirect URL for this step (optional)

tip

Each step type has its own config schema. See the flow-step guides for the shape of each step's configuration.

update_flow_step

Update a step's name, config, or redirect URLs. Required: flowId, stepId, config.

delete_flow_step

Soft-delete a step from a flow. Required: flowId, stepId.

Forms

list_forms

List forms for the bot's organization, with optional pagination and sorting. Same pagination fields as list_flows (without filter).

create_form

Create a new form. Required: name, sections.

Field	Type	Description
name	string	Display name of the form
sections	array	Array of FormSection objects

update_form

Update a form's name and/or sections. Required: formId.

get_form

Get a form by its ID. Required: formId.

delete_form

Hard-delete a form by its ID. Required: formId.

API keys

list_api_keys

List API keys for the bot's organization.

create_api_key

Create a new API key. Required: keyType. The plain-text key is returned once in the key field of the response, so store it immediately.

Field	Type	Description
keyType	string	SECRET or PUBLISHABLE
name	string	Human-readable name (optional)
description	string	Description (optional)
allowedOrigins	array of strings	Allowed CORS origins (optional)
options	object	Additional options as a JSON object

get_api_key

Get an API key by its ID. Required: apiKeyId.

update_api_key

Update an API key's name, description, allowed origins, or options. Required: apiKeyId.

delete_api_key

Soft-delete an API key by its ID. Required: apiKeyId.

Sandbox vs production

Every tool takes an optional sandbox boolean. When true, the tool reads and writes against the sandbox dataset; when false or omitted, it operates on production data.

This means a single bot token can drive both environments, which is useful for agents that build a flow in sandbox, validate it, and then promote it to production in one session.

Error handling

MCP errors follow the standard MCP error model:

Condition	Error code	Notes
Missing or malformed parameters	INVALID_PARAMS	Returned when JSON parsing or schema check fails
Unknown tool name	METHOD_NOT_FOUND	Tool not registered on this server
RBAC policy denial	INVALID_REQUEST	Message: "Permission denied"
Unexpected backend / DB / RBAC error	INTERNAL_ERROR	Server-side failure; check Zyphe logs

HTTP-level failures (401, 403) are returned before the MCP envelope and indicate problems with the bot token or middleware, not with a specific tool call.

Example session

A typical agent conversation with the Zyphe MCP server might look like this (paraphrased; the agent translates intent into tool calls):

You: Create a sandbox flow called "Onboarding Test" with a document verification step.

Agent:

1. calls create_flow with { name: "Onboarding Test", slug: "onboarding-test", webhookUrl: "...", successUrl: "...", sandbox: true }
2. takes the returned flowId and calls create_flow_step with { flowId, name: "DV", stepType: "DV", config: { stepType: "DV", ... }, order: 0, sandbox: true }
3. returns: "Created sandbox flow onboarding-test (id …) with one DV step at position 0."

Security notes

• Bot tokens authenticate at the request level; the MCP transport does not add a separate session layer.
• All tool calls are subject to the same role-based access control policies that govern the REST API. A bot scoped to a specific role cannot escalate privileges through MCP.
• Token hashes are stored with SHA-256; plain-text tokens are never persisted.
• Regenerating a bot's token instantly invalidates the previous one. Use this if you suspect leakage.
